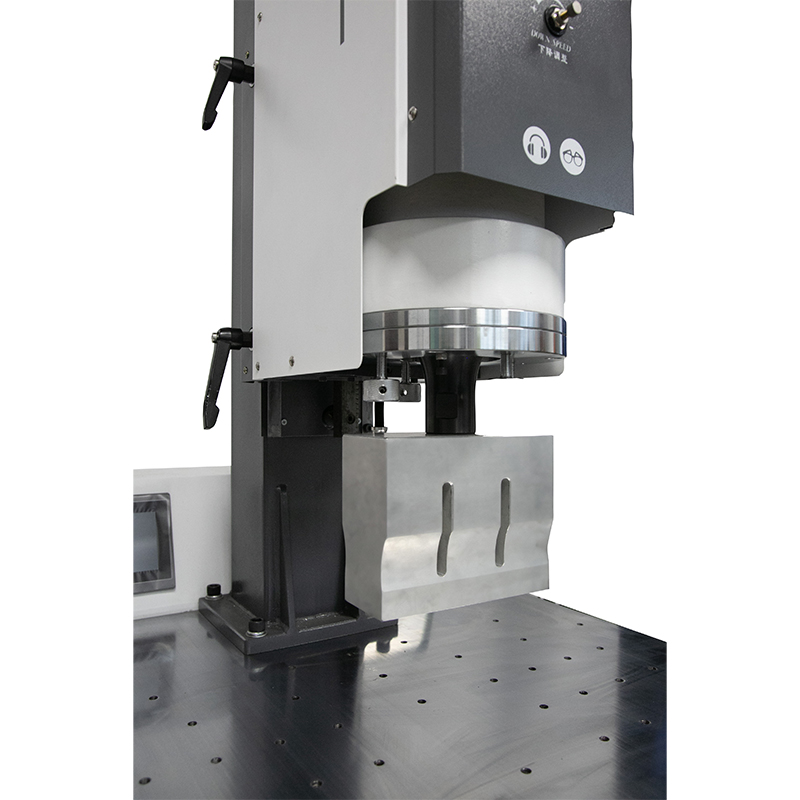

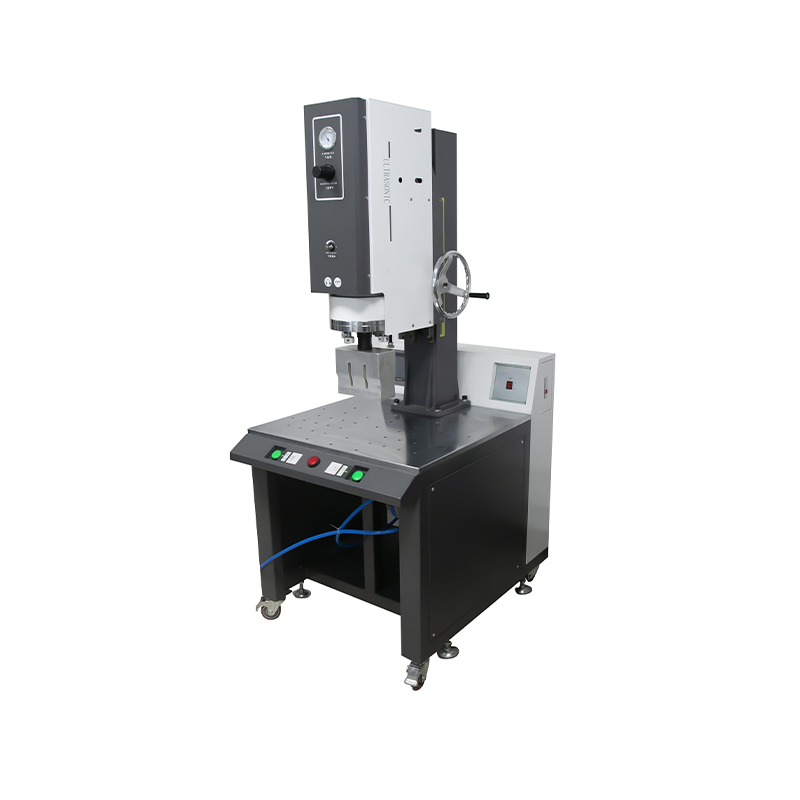

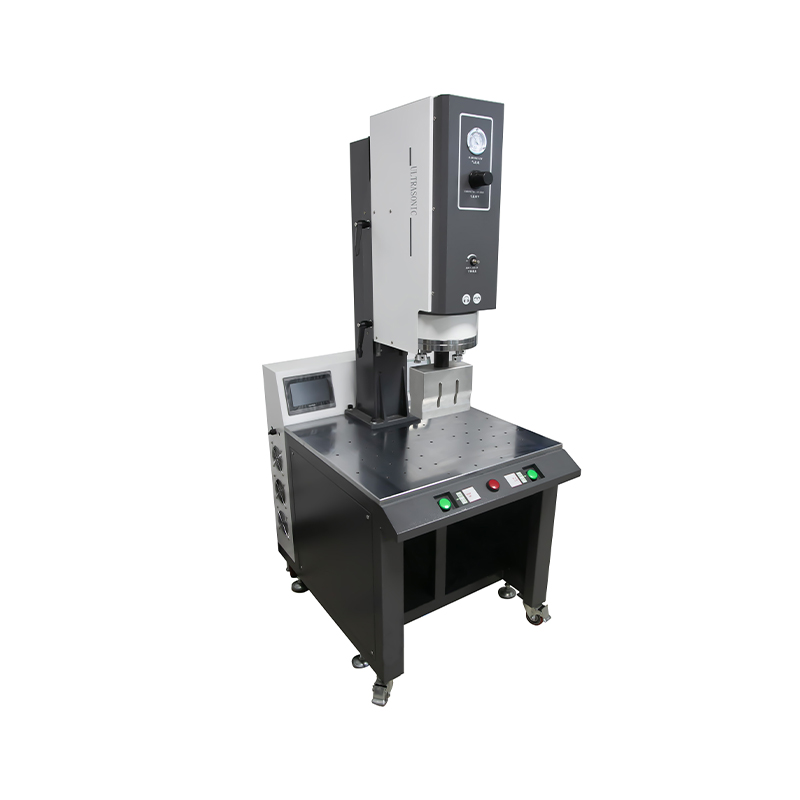

High Power Ultrasonic Welding Machine

HC-1542/HC-1560
Applicable to: drying drums, ink cartridges, car dashboards, headlights, taillights, car filters, etc., welding of larger products.
Product Description:
1. Japanese NTK series transducer, strong power and good stability.
2. The body is designed with anti-backward and coaxial direct pressure, and the pressure is evenly applied to improve the welding precision.
3. 4200W power output, suitable for welding of larger plastic products, with good welding effect.
4. The main electrical components and parts are assembled with high-quality imported parts.
5. The unique horizontal screw design makes the mold easy to debug.
6. Ingenious structure, reasonable design and beautiful appearance.
Specifications HC-1542
Output power (W) 4200W
Frequency 15KHz
Input voltage 220V
Welding head stroke 100mm (adjustable)
Oscillation system Self-excited oscillation circuit
Output time 0.01-9.99S
Current indication Output amplitude meter indication
Air pressure Air pressure range 1-7bar
Power output range 1-4 gears continuously adjustable
Vibration head cooling system Air cooling
Welding area (mm) ∮350mm
Dimensions 970×750×1950
Net weight 320kg
×
